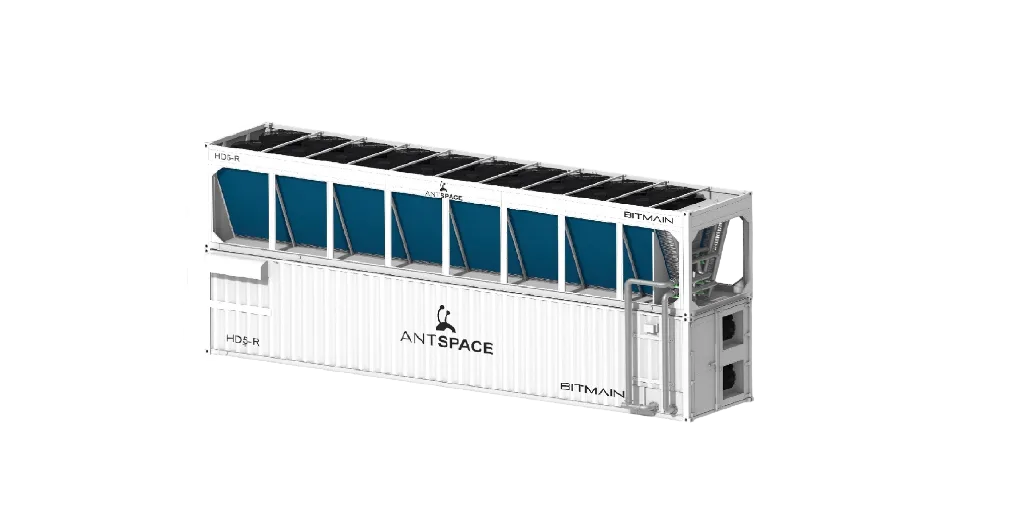

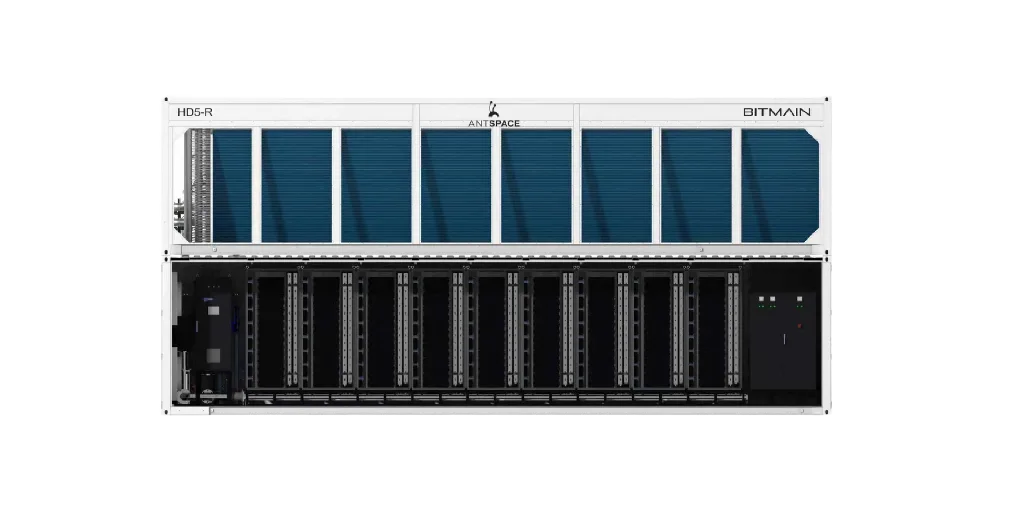

ANTSPACE HD5-R Hydro Cooling Container – 1620 kW Capacity

The ANTSPACE HD5-R Hydro Cooling Container provides a massive infrastructure solution for large-scale operations. Consequently, this modular housing supports 135 server-form factor units effectively. Operators benefit from the integrated liquid cooling system design. Thus, it ensures stable thermal management for high-density hardware. This robust unit simplifies complex site setups immediately. It handles extreme power demands with ease.

This liquid-cooled container system features a 40ft High Cube ISO frame for global transport. Furthermore, the steel construction protects sensitive internal components during shipping. The unit uses a DN125 water interface for high-volume flow. Therefore, engineers can connect external dry cooling towers quickly. This setup maintains a consistent water flow rate of 130 cubic meters hourly.

ANTSPACE HD5-R Hydro Cooling Container Features and Benefits

The ANTSPACE HD5-R Hydro Cooling Container offers unparalleled power density for modern data centers. Specifically, it delivers 1620 kW of power and cooling capacity. The internal layout maximizes space with 135 dedicated rack spaces. Additionally, the unit meets strict UL and CE certification standards. This ensures safety and reliability for institutional investors globally. The hydro technology eliminates heat efficiently.

This high-density hydro housing manages heat using an advanced liquid-to-air exchange process. Moreover, the system operates optimally at a 400V voltage input. It supports server-shaped products like the U3S23H series specifically. Therefore, users achieve high space efficiency in every deployment. The container supports a maximum operating weight of 18.2 tons. It provides a stable environment for hardware longevity.

Why Choose ANTSPACE HD5-R Hydro Cooling Container

Choosing the ANTSPACE HD5-R Hydro Cooling Container accelerates the growth of any mining farm. Currently, its modular nature allows for rapid scaling in diverse climates. The external dry cooler power stays below 70 kW for better efficiency. Furthermore, the RJ45 network connection enables seamless remote monitoring. Operators can maintain tight control over the entire fleet easily. It represents the pinnacle of industrial cooling engineering.

In conclusion, the ANTSPACE HD5-R Hydro Cooling Container is the ultimate infrastructure asset. It combines massive 1620 kW power capacity with a standard 40ft footprint. Consequently, logistics and installation become significantly more manageable for teams. This housing protects your hardware investment from environmental hazards. Upgrade your site today with this high-performance liquid cooling solution. It sets the standard for industrial scale mining operations.

---

ANTSPACE HD5-R Hydro Cooling Container Technical Specifications

Review the ANTSPACE HD5-R Hydro Cooling Container specifications to understand its full operational capacity. This detailed list highlights the core power and cooling metrics. Every component meets industrial standards for long-term durability. Thus, operators can plan their infrastructure requirements with total precision. Additionally, these verified specifications ensure compatibility with high-performance server hardware. It remains a top choice for large-scale projects.

• Unit Capacity: 135 units (designed for server-form factor hydro miners like U3S23H and U3S21EXPH)
• Slots: 135 Rack Spaces
• Cooling Capacity: 1620 kW
• Power Capacity: 1620 kW
• Cooling Type: Hydro (Liquid-cooled with external Dry Cooling Tower)
• External Dimensions: 12192 x 2438 x 2896 mm (Standard 40ft High Cube Container)
• Internal Dimensions: Standard 40ft ISO container internal dimensions (~12.03m length)
• Shipping Weight: 12 Tons
• Operating Weight: 18.2 Tons
• Material: Steel (ISO Standard Container Construction)
• Ventilation: Water flow rate ≥ 130 m³/h; External Dry Cooler power ≤ 70 kW
• Certifications: CCS, NFPA 79, UL 508A, CSA (UL Version); ANSI/ISO 12100, IEC 60204 (CE Version)
• Cooling Interface: Water-cooled via DN125 interface
• Operating Temp: Outlet water temp 35℃±1˚C @ 30℃ ambient (Dry Cooler spec)
• Humidity Range: 10%~90% RH
• Network Connection: RJ45 Ethernet
• Voltage: 400V±5% (AC Input)

---

Notes

• Payment accepted in USDT, USDC, BTC, or USD. The unit price and total price of the products, and the amount paid are denominated in U.S. dollars.
• The shipping costs, customs charges, and taxes(if any) are not included in the retail price shown above.
• After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.
• The pictures shown are for reference only; the final shipment version shall prevail.
• The Hashrate value, Power on wall, and Power efficiency on wall are all typical values, The actual Hashrate value fluctuates by ±3%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%.
• Caution: Wrong input voltage may probably cause product damaged.

---
