Overview

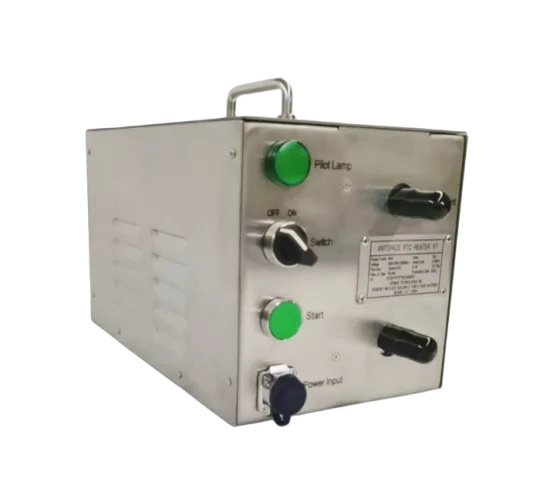

The ANTSPACE PTC Heater V1 is a high-performance pre-heater unit designed for use in containerized water-cooling systems, particularly in industrial or mining operations. It employs PTC (Positive Temperature Coefficient) heating elements to efficiently and reliably raise the temperature of the cooling medium. The system is engineered with multiple safety and environmental protection features to ensure stable performance in demanding conditions.
Typical Applications
Pre-heating coolant in containerized mining rigs or data center water-cooling systems
Maintaining coolant temperature before high-load operation
Use in cold environments requiring robust heating performance
Why It Stands Out
Dual thermal protection (25 °C inlet + 50 °C outlet) provides layered safety.
Compact footprint allows installation in tight container rack spaces.
Engineered with industrial-grade reliability and attention to thermal control.
Operates reliably across wide environmental ranges with stable water-flow performance.
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Rated Current (400V input) | 8.7 A |
| Rated Power (380V input) | 6000 W |
| Voltage Range | 380–420 V AC |
| Frequency Range | 50–60 Hz |
| Phase | 3-Phase |
Temperature & Protection
| Feature | Specification |
|---|---|
| Auto Shutdown Temperature (Inlet) | 25 °C |
| Auto Shutdown Temperature (Outlet) | 50 °C |
| Overheat Protection | ✅ Yes |
| Dry Heating Protection | ✅ Yes |
Environmental Conditions
| Parameter | Specification |
|---|---|
| Operating Temperature | -40 °C to 50 °C |
| Storage Temperature | -40 °C to 70 °C |
| Altitude | < 2000 m |
Mechanical & Flow Characteristics
| Parameter | Specification |
|---|---|
| Dimensions | 339 mm × 188 mm × 200 mm |
| Net Weight | 11 kg |
| Water Flow Rate | 10 L/min |
| Head Loss | ≤ 10 kPa |
Purchasing Guidelines
NOTES
- One account can purchase a maximum of 500 units.
- The shipping costs, cutsoms charges, and taxes(if any) are not included in the retail price shown above.
- After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by BITMAIN.
- The pictures shown are for reference only; the final shipment version shall prevail.
SHIPPING DETAILS
- The products are made in China. If shipping to the U.S., customers will need to pay an extra 25% tariff.
- Shipments will be scheduled on a first-paid-first-ship basis for orders on which BITMAIN has received full payment.
- You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It’s highly recommended to be aware of local customs clearance policies and to prepare all customs documentation ahead of time to avoid any customs clearance delays or unexpected costs.
